Answer first: For small gyms, plan a commercial power rack as a zone, not just a frame: machine width/depth + 24–36" side clearance + 6–8 ft barbell pull-out / walkway in front (more if bumper plates and Olympic lifts). Prefer a half rack or compact full cage when floor is under ~150–200 sq ft of usable strength space; choose an all-in-one (rack + Smith + cables) when one footprint must replace multiple stations.

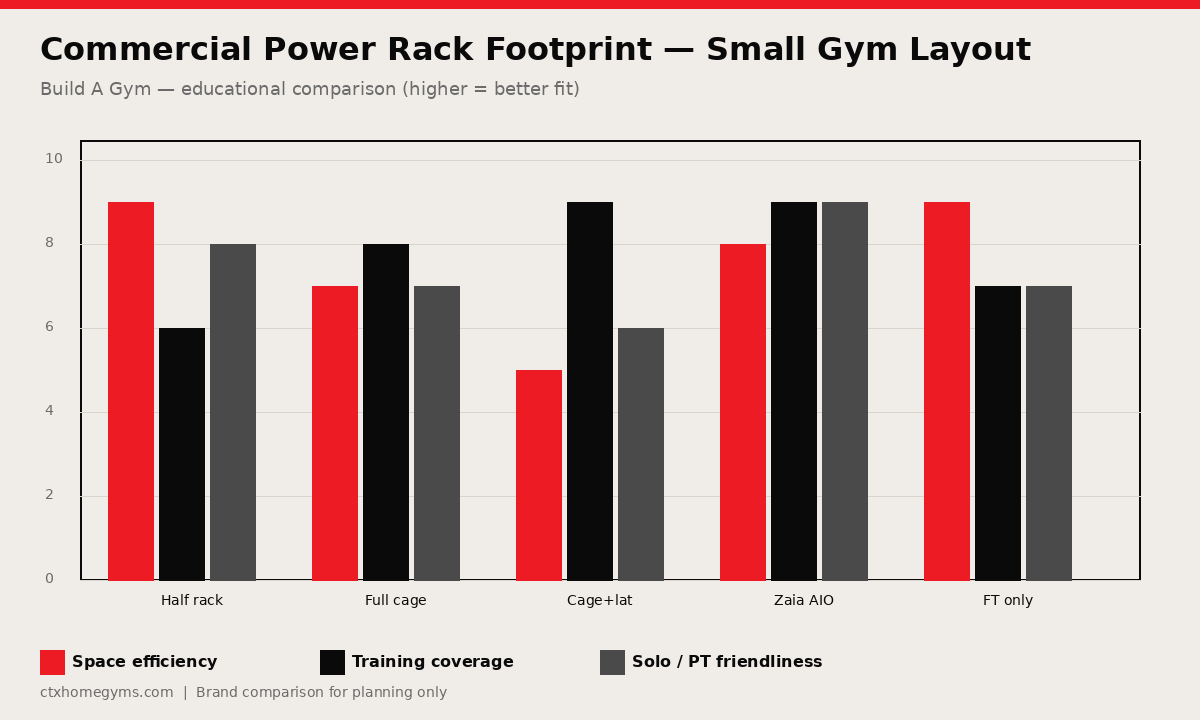

Footprint planning table
| Station type | Typical frame footprint* | Plan with clearances | Best small-gym role |
|---|---|---|---|
| Half rack / squat stand (commercial) | ~4' W × 4–5' D | ~7–8' W × 8–10' D zone | Max space efficiency for barbell work |
| Full power cage | ~4–5' W × 5–6' D | ~8' W × 9–11' D zone | Safest solo compounds; less “open” feel |
| Cage + lat/cable attachment | Add 2–3' depth or side | One deeper zone | Combines accessories without a second station |
| All-in-one (e.g. Zaia-style) | One multi-use footprint | Confirm model dims + cable swing | Best “one station does most” option |
| Functional trainer only | Narrower; watch stack depth | Cable swing clearances | Not a rack substitute—pair or sequence |
*Always verify manufacturer dimensions. Clearances assume general strength use; Olympic lifting platforms need more depth.
Layout rules that save small gyms
- Put the rack on a long wall, not in the room center—unless you need 360° coaching sightlines.
- Align barbell load direction with the longest clear path so plate changes don’t block cardio or FT.
- Keep dumbbells/storage on the short wall to protect the rack’s pull-out lane.
- Don’t park a functional trainer in the rack’s front zone. Cable and bar paths fight each other.
- Ceiling height: plan pull-up + jump clearance; commercial cages often need 8'+ preferred, more for platforms.
- Flooring: continuous rubber under the rack zone reduces trip edges in tight rooms.
Sample small-gym layouts
~120 sq ft strength corner (garage / micro studio)
- Half rack or compact cage against back wall
- Adjustable bench that stores vertically
- One dumbbell tree OR bumper plates on vertical tree—not both sprawled
- Skip separate FT unless using wall-mounted cables or an all-in-one
~200–300 sq ft boutique / PT room
- Full cage OR half rack + separate compact FT on opposite wall
- Shared walkway down the middle (never cross bar path with cable fly arc)
- Optional reman selectorized piece only if walkway remains ≥36"
One-footprint maximizer
- All-in-one such as BUILT Strength Zaia (rack + Smith + dual cables) when you cannot fit two commercial stations
Common footprint mistakes
- Buying a deep cage + lat tower without measuring door swing and HVAC clearance
- Placing plate storage inside the spotter lane
- Assuming “fits in the brochure photo” equals fits with a loaded bar and two coaches
- Choosing consumer racks that tip or flex under commercial plates—small gyms still need commercial uprights if used all day
Helpful options to compare
- Power racks
- Smith machines
- BUILT Strength Zaia all-in-one
- Remanufactured strength for commercial cages on a tighter CapEx
FAQ
How much space does a commercial power rack need?
Plan beyond the frame: most small gyms need roughly an 8'×10' zone for a full cage with safe loading and walkway. Half racks can shrink the depth requirement.
Half rack or full cage for a small gym?
Half rack if space and open coaching matter; full cage if solo lifters and safety pins/spotter arms are non-negotiable.
Can I put a functional trainer next to a power rack?
Yes—on a different wall or with a clear shared aisle. Avoid overlapping the bar pull-out with the cable fly arc.
What’s the best footprint if I can only buy one station?
An all-in-one rack/Smith/cable system, or a cage with cable attachment—otherwise you’ll outgrow a single-purpose consumer unit quickly.
Do remanufactured commercial racks save space vs new?
Footprint is about model geometry, not new vs reman. Reman mainly saves capital so you can afford the right commercial footprint sooner.
Build A Gym — measure twice, place once. Confirm exact product dimensions on each listing before you bolt anything down.
